Capabilities Content

Capabilities

EI is a high-mix, low-to-mid volume, flexible manufacturer with the capability to build highly complex assemblies. We can process assemblies with the latest technologies. We produce both lead and RoHS Compliant assemblies.

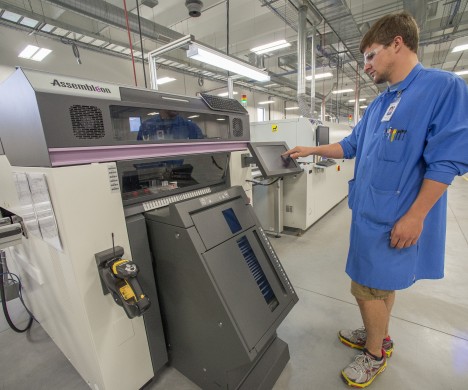

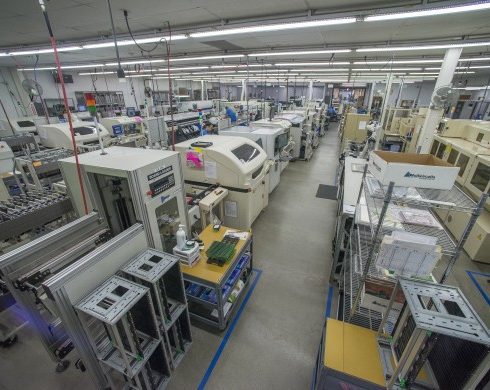

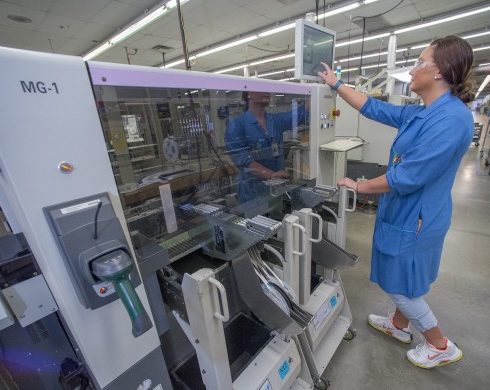

SMT lines in production facility.

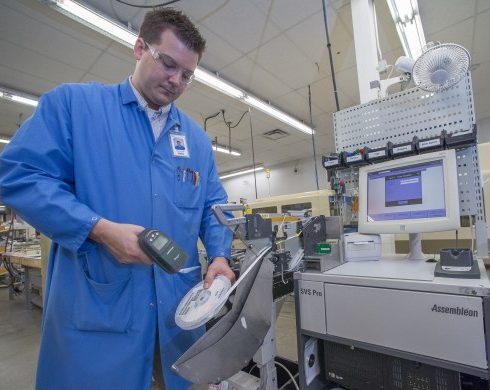

SMT

  • SMT lines in production facility.
  • 01001 Chip Components
  • Micro BGAs 0.3 mm Pitch
  • Package on Package / Part on Part (PoP)
  • Flex and Rigid Flex Assemblies
  • Vapor Phase or Convention Reflow Ovens

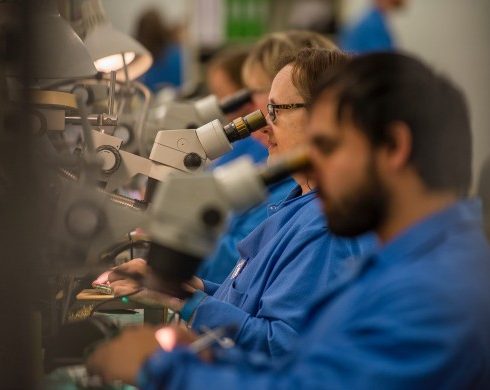

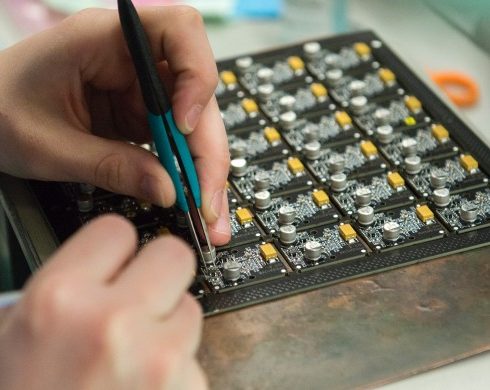

Hand Soldering through Microscope

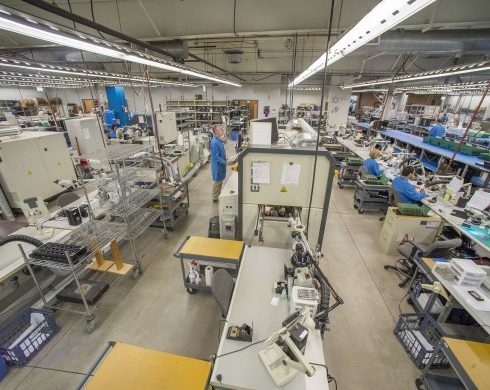

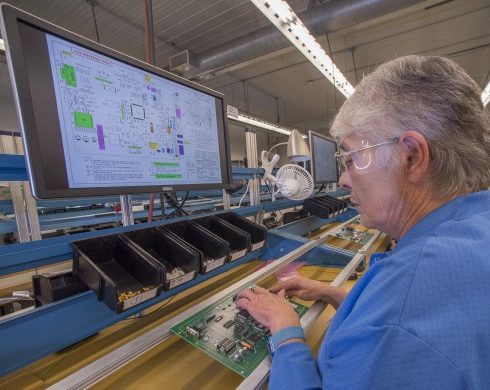

Through-Hole

  • Hand Soldering through Microscope

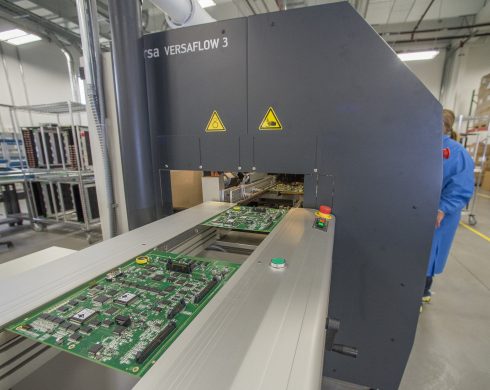

  • Robotic Selective Soldering
  • Wave Soldering
  • AOI Inspection
  • IPC-A-610 Certified Solderers and In-House Trainer

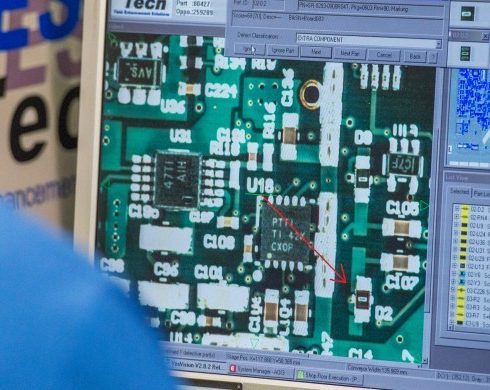

Optical and X-Ray Test Machine.

Inspection

  • Optical and X-Ray Test Machine.
  • Optical and X-Ray Inspection
  • 3D Solder Paste Inspection
  • ICT, Functional and Flying Probe Testing
  • X-Ray Fluorescence
Automated Conformal Coating Machine

Automated Conformal Coating

  • Automated Conformal Coating Machine
Equipment
  • 3 – Conformal coating machines w/ tilting heads and three modes of operation
  • 5 – Dispensing machines
  • 3 – Curing ovens
  • 1 – UV AOI (automated optical inspection)
  • Most of the benefits of potting but easier to work with
Process
  • Offers more controlled coating thickness
  • More cost effective then batch processing
  • Less material used when spraying
  • Higher repeatability

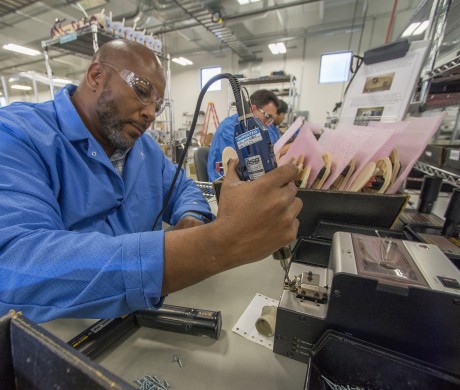

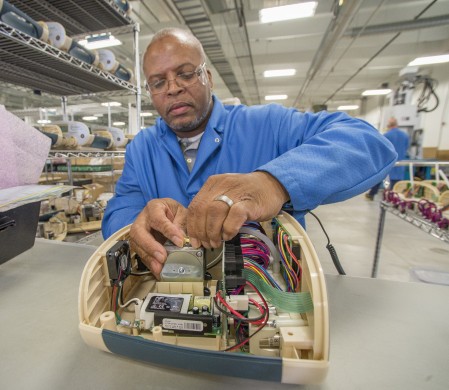

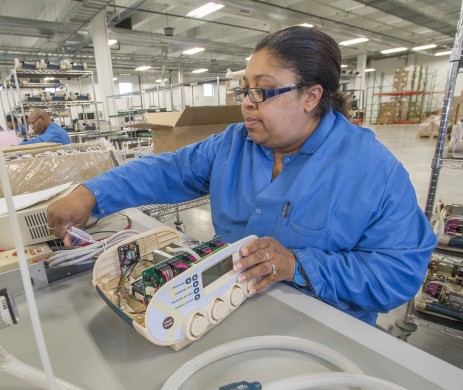

Electromechanical work on a Box Build assembly.

Box Build

  • Electromechanical work on a Box Build assembly.

EI offers a wide range of box build services including full electromechanical assembly, installation of sub-assemblies and components, installation and routing of cables and wire harnesses and final product packaging.

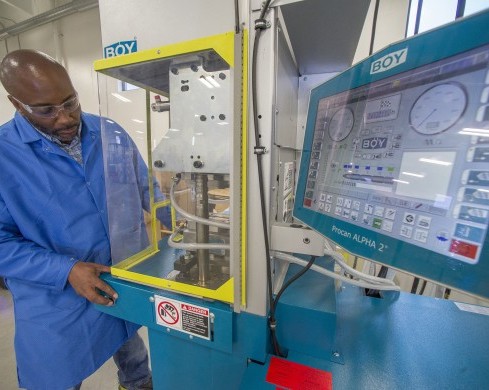

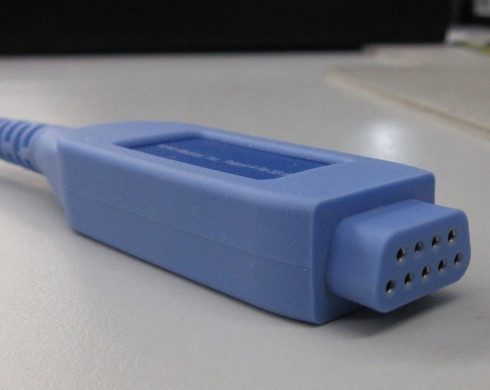

BOY Injection Mold Machine used for overmolding products.

Overmolding

  • BOY Injection Mold Machine used for overmolding products.

EI offers premolding and overmolding of a wide variety of materials in house utilizing a 25 ton vertical injection molding machine.  Overmolding protects circuit boards from environmental concerns while allowing full color customization and streamlining the outer appearance of the finished product.  The overmold can incorporate company logos, approvals information and even graphics.

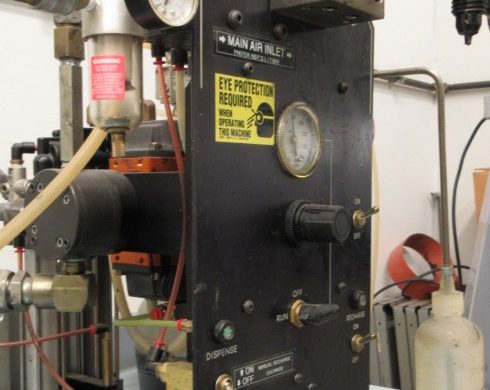

Automated Potting Machine

Potting

  • Automated Potting Machine
Equipment
  • Automated high volume 2-part dispensing
Process

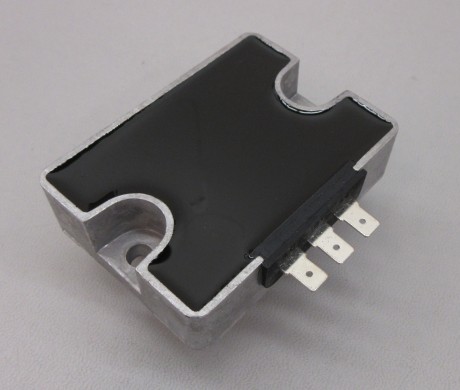

  • Liquid potting compound used to completely enclose your assembly in its case
  • Potting gives resistance to shock and vibration
  • Potting helps with exclusion of moisture and corrosive agents
